Mindman Guide Cylinders

Mindman offers a huge selection of guide cylinders in the following categories:

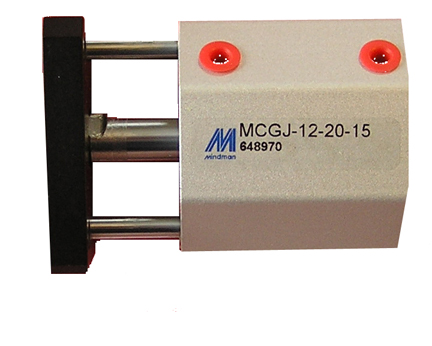

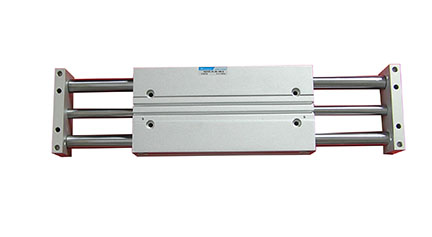

Twin guide cylinders; MCGA, MCGB, MCGS, MCGJ, MGTB, MGTK, MGTU, MGTX, MCGD

Triple-guide cylinder: MCG3          Dual-rod cylinder: MCDA        Dual-rod slide cylinder: MCDB

Slide cylinder: MCSS            low profile slide cylinder: MCSF        Compact slide: MCSH

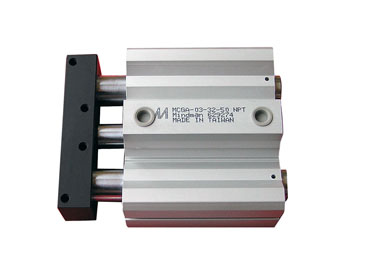

Below are a few examples of the twin guide cylinder category.  MCGA twin guide cylinder

Tube I.D.: 20, 32, 40, 50, 63, 80 mm

strong cylinder suitable for heavy load, used extensively for stopping work carriers in both vertical and horizontal positions.

large diameter guide rods enable the cylinder to take large off-set loads

can be used as 90 degree pusher on large conveyor systems

magnetic feature is standard

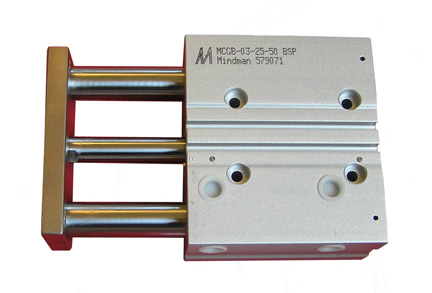

MCGB twin guide cylinder

Tube I.D.: 12, 16, 20, 25, 32, 40, 50, 63 mm

connection from 2 directions and 3 type of fixing (pierced hole bolt, back tapped hole, bottom tapped hole)

recessed cylinder body for placing miniature sensor switches

special packing absorbs the shock at the end of stroke

magnetic feature is standard

MGTB twin guide cylinder

Tube  I.D.: 20, 25, 32, 40, 50, 63 mm

can be assembled to conform to ISO6432

external guide rods ensure anti-rotation

simple installation with universal mounting hles

magnetic feature is standard
