Mindman Air Cylinders:

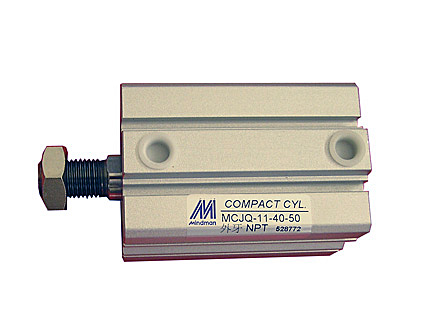

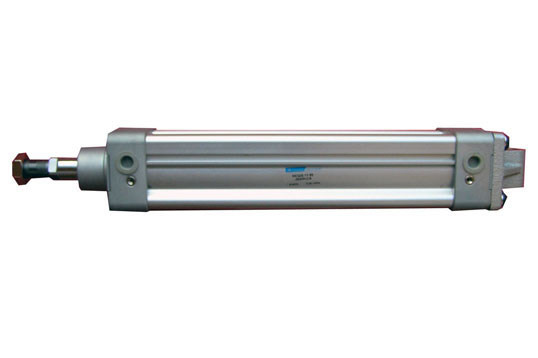

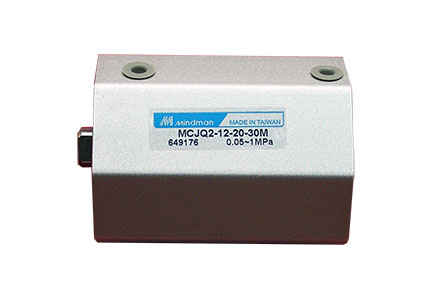

Pneumatic cylinders are powered by compressed air which imparts force and motion on the piston. Mindman manufactures a variety of high quality air cylinders for different applications.  These air cylinders are made with hard, anodized aluminum alloy or stainless steel tubes that resist corrosion and abrasion.  The special oil-filled, alloy housing design and bushing provide the needed self-lubrication of the piston rod. Standard air cylinders include these series -- MCQA, MCQV, MCQI, MCQN.  Compact cylinders include MCJQ, MCJT, MCJS, MCJK, MCFA.  Mini cylinders include MCMA, MCMB, MCMI as well as the pen cylinder MCMJ series.  Twin Guide cylinders include MCGA, MCGB, MCGJ, MGT, MCGD. Triple guide cylinders: MCG3.  Dual rod cylinders consist of these series: MCDA, MCDB, MCSS, MCSH.


 Only a few models are shown below.  Please contact us for more models and specifications.

Mindman Air Cylinder

MCJS series ( bore size from 12 mm to 100 mm)
Features: ultra compact, light weight, space saving
wide range of bore sizes (12 mm to 100 mm) and strokes
available in single and double acting version
ideal for use in machines where space is limited
incorporates sensor groove which enables flush fitting of sensors
sensor can be mounted on any one of three faces on 12 and 16 bore and on four faces on 20 to 100 bore

Mindman Air Cylinder
MCJT series (tube I.D. from 12 to 100 mm)



Features:
ultra compact, light weight and space saving cylinder
wide range of bore sizes and strokes (12 mm to 100 mm)
single and double acting available


Mindman Air Cylinder
MCMA series (tube I.D. from 16 to 40 mm)

Features:
Self lubrication: special housing and bushing enables self lubrication of piston rod
Hard, anodized stainless steel cylinder tubes provides high resistance to corrosion and low internal friction
wide range of accessories available for different mounting options
single and double acting type available;  magnetic feature is standard

Mindman Air Cylinder
MCMI series (tube I.D. from 8 to 25 mm)



Features:
special housing and bushing enable self-lubrication of piston rod
hard anodized stainless steel cylinder tubes provide high resistance to corrosion
wide range of mounting accessories available for rigid or flexible cylinder mounting
conformity to ISO-6432 standard enables world-wide inter-changeability
magnetic feature is standard

Mindman Air Cylinder

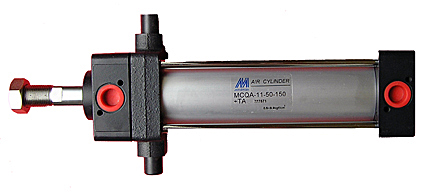

MCQA series (tube I.D. from 40 to 200 mm)



Features: high quality and long service life
special housing and bushing enable self-lubrication of piston rod
hard anodized aluminum tubes provider high resistance to corrosion and low internal friction
custom cylinders such as rod extensions and rod threads and non-standard strokes are available
wide range of internationally recognized accessories available for fixed and flexible mounting

Mindman Air Cylinder

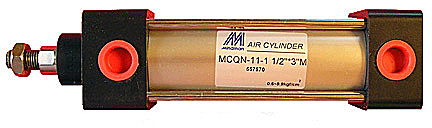

MCQN series (tube I.D. from 1.5 to 4 inches)



Features:
special housing and bushing enable self-lubrication of piston rod
hard anodized aluminum tubes provider high resistance to corrosion and low internal friction
full range of NFPA interchangeable mounting configurations. Mounting dimensions are in accordance with
ANSI (NFPA) T3.6.7 R2-1996, fluid power systems and products - square head industrial cylinders -
mounting dimensions

Mindman Air Cylinder

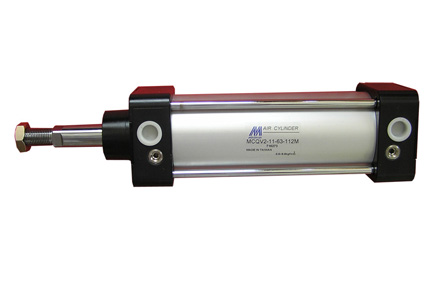

MCQV2 series  (tube I.D. from 32 to 100 mm)

Features:
special housing and bushing enable self-lubrication of piston rod
anodized aluminum cylinder tubes offerhigh resistance to corrosion and low internal friction
conforms to ISO-6431 and VDMA 24562 specifications, enabling worldwide interchangeability
wide range of internationally recognized cylinder mountings, fixed and flexible
